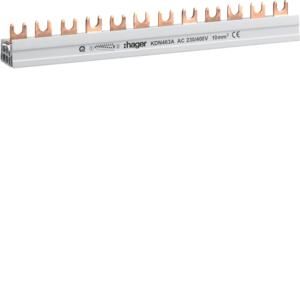

Hager KDN463A phase rail 4-pole

Hager KDN463A phase rail 4-pole

In stock

SKU: 157968

Price on request

€15.74

€0

Into a basketIn the basketGo

Overview

Phase rail 4 pole with fork connection 10mm 63A 12 modules. Phase rail for suitable modular devices.

Property	Value
Number of poles:	4
Number of phases:	3
Length:	210 mm
Cross section:	10 mm²
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue:	400 V
Insulated:	yes
Suitable for number of devices:	3
Suitable for devices with N conductor:	yes
Pitch dimension:	17.8 mm
Suitable for devices with auxiliary switch:	no
Design of the electrical connection:	Fork
Rated impulse voltage:	4.5 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorYes

Suitable for number of devices3

Pitch dimension17.8 mm

Rated surge voltage4.5 kV

Manufacturer

HANKDN463A

GTIN3250613740931

Number of phases3

Design of the electrical connectionFork

Rated continuous current Iu63 A

IsolatedYes

Length210 mm

Max. rated operating voltage Ue400V

Number of poles4

Cross-section10 mm²
