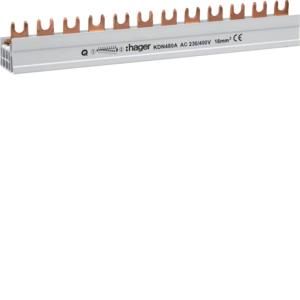

Hager KDN480A phase rail 12M 4P fork 16mm 80A

Hager KDN480A phase rail 12M 4P fork 16mm 80A

In stock

SKU: 157956

Price on request

€19.15

€0

Into a basketIn the basketGo

Overview

Phase rail 4-pole with fork connection 16mm² 80A 12 modules. Phase rail for suitable modular devices.

Property	Value
Number of poles:	4
Number of phases:	3
Length:	210 mm
Cross-section:	16 mm²
Rated continuous current Iu:	80 A
Max. Rated operating voltage Ue:	400 V
Insulated:	yes
Suitable for number of devices:	4
Suitable for devices with N conductor:	yes
Pitch:	17.8 mm
Suitable for devices with auxiliary switch:	no
Design of the electrical connection:	Fork
Rated impulse voltage:	4.5 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorYes

Suitable for number of devices4

Pitch dimension17.8 mm

Rated surge voltage4.5 kV

Manufacturer

HANKDN480A

GTIN3250613741013

Number of phases3

Design of the electrical connectionFork

Rated continuous current Iu80A

IsolatedYes

Length210 mm

Max. rated operating voltage Ue400V

Number of poles4

Cross-section16 mm²
