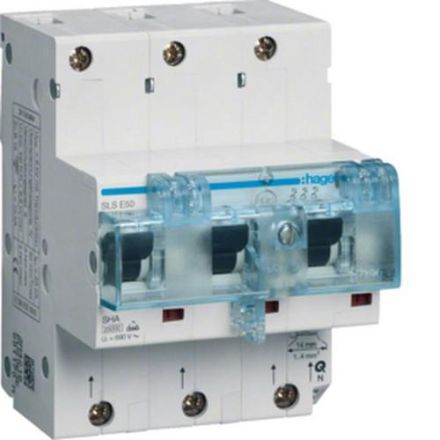

Hager HTN350E SLS switch 3-pole IG 50A for DIN rail

In stock
SKU: 156681
€132.24
Into a basketIn the basketGo

Overview

SLS switch 3-pole E characteristic 50A for DIN rail mounting. SH switch according to E-DIN0641-21 and dimensional standard DIN 43 880 size 2. SLS in 1- or 3-pole design, single-pole switching, with separate contact position indicator. For direct mounting on DIN rail. The standard (no suggestions) allows the following locks: for the customer to prevent accidental or deliberate switching for the installer with a padlock when working in the system for the DNB with sealing wire, padlock or special key.

Property Value
Number of poles: 3
Rated current: 50 A
Rated voltage: 400 V
Tripping characteristic: E
Protection class (IP): IP20
Mounting type: DIN rail
Rated insulation voltage Ui: 690 V
Frequency: 50 Hz
Pollution level: 3
Rated breaking capacity: 25 kA
Rated impulse withstand voltage: 6 kV
Overvoltage category: 4
Switching neutral conductor: no

Characteristics

Rated breaking capacity25 kA
ManufacturerHAGER
HANHTN350E
GTIN3250613303358
Trigger characteristicsE
Rated insulation voltage Ui690V
Rated voltage400V
Rated current50A
Frequency50Hz
Switching neutral conductorNo
Mounting typeDIN rail
Number of poles3
IP protection)IP20
Degree of contamination3
Overvoltage category4
