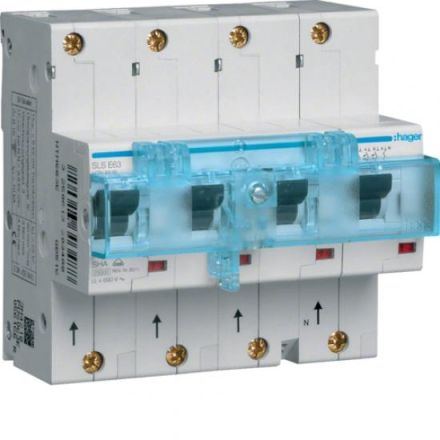

Hager HTN663C SLS switch 3-pole+N Cs-63A DIN rail

In stock
SKU: 304210
€383.55
Into a basketIn the basketGo

Overview

SLS switch 4-pole 3P+N Cs characteristic 63A for top hat rail mounting. SH switch according to DIN0641-21 and dimensional standard DIN 43880 size 2. SLS in 1- or 3-pole design, single-pole switching, with separate contact position indicator. For direct mounting on top hat rail. The standard (no suggestions) allows the following locks: for the customer to prevent accidental or deliberate switching, for the installer with a padlock when working in the system, for the DNB with a sealing wire, padlock or special key.

Property Value
Number of poles: 4
Rated current: 63 A
Rated voltage: 400 V
Tripping characteristics: Cs
Protection class (IP): IP20
Mounting type: DIN rail
Rated insulation voltage Ui: 690 V
Frequency: 50 Hz
Pollution level: 3
Rated breaking capacity: 25 kA
Rated impulse withstand voltage: 6 kV
Overvoltage category: 4
Switching neutral conductor: yes

Characteristics

Rated breaking capacity25 kA
ManufacturerHAGER
HANHTN663C
GTIN3250613305635
Trigger characteristicsCs
Rated insulation voltage Ui690V
Rated voltage400V
Rated current63 A
Frequency50Hz
Switching neutral conductorYes
Mounting typeDIN rail
Number of poles4
IP protection)IP20
Degree of contamination3
Overvoltage category4
