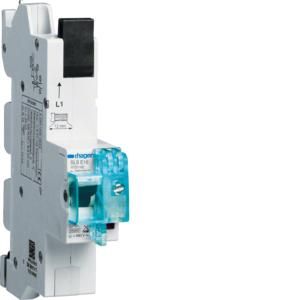

Hager HTS116E SLS switch 1-pole 16A for busbar

In stock
SKU: 156689
€87.02
Into a basketIn the basketGo

Overview

SLS switch 1 pole E characteristic 16A for QuickConnect busbar. SH switch according to DIN0641-21 and dimensional standard DIN 43880 size 6. SLS in different pole design, single pole switching, with separate contact position indicator. Plug-in contact for direct busbar mounting. The standard multifunctional lock enables the following locking: for the customer to prevent accidental or deliberate switching, for the installer with a padlock when working in the system, for the VNB with a sealing wire, padlock or special key.

Property Value
Number of poles: 1
Rated current: 16 A
Rated voltage: 400 V
Triggering characteristic: E
Protection class (IP): IP20
Mounting type: Busbar
Rated insulation voltage Ui: 690 V
Frequency: 50 Hz
Pollution degree: 3
Rated breaking capacity: 25 kA
Rated impulse withstand voltage: 6 kV
Overvoltage category: 4
Switching neutral conductor: no

Characteristics

Rated breaking capacity25 kA
ManufacturerHAGER
HANHTS116E
GTIN3250613303013
Trigger characteristicsE
Rated insulation voltage Ui690V
Rated voltage400V
Rated current16A
Frequency50Hz
Switching neutral conductorNo
Mounting typeBusbar
Number of poles1
IP protection)IP20
Degree of contamination3
Overvoltage category4
