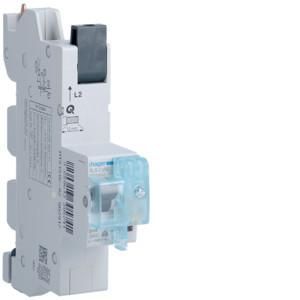

Hager HTS150C1 SLS switch 1-pole 50A for Sael rail

In stock
SKU: 304229
€67.03
Into a basketIn the basketGo

Overview

SLS switch 1-pole Cs characteristic 50A for busbar QuickConnect L1. SH switch according to DIN0641-21 and dimensional standard DIN 43880 size 6. SLS in different pole design, single pole switching, with separate contact position indicator. Plug-in contact for direct busbar mounting. The standard multifunctional lock enables the following locking: for the customer to prevent accidental or deliberate switching, for the installer with a padlock when working in the system, for the VNB with a sealing wire, padlock or special key.

Property Value
Number of poles: 1
Rated current: 50 A
Rated voltage: 400 V
Triggering characteristic: Cs
Protection class (IP): IP20
Mounting type: Busbar
Rated insulation voltage Ui: 690 V
Frequency: 50 Hz
Pollution degree: 3
Rated breaking capacity: 25 kA
Rated impulse withstand voltage: 6 kV
Overvoltage category: 4
Switching neutral conductor: no

Characteristics

Rated breaking capacity25 kA
ManufacturerHAGER
HANHTS150C1
GTIN3250613305062
Trigger characteristicsCs
Rated insulation voltage Ui690V
Rated voltage400V
Rated current50A
Frequency50Hz
Switching neutral conductorNo
Mounting typeBusbar
Number of poles1
IP protection)IP20
Degree of contamination3
Overvoltage category4
