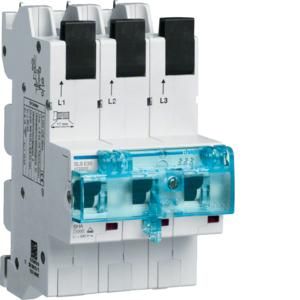

Hager HTS332E SLS switch 3-pole 32A for busbar

In stock
SKU: 156683
€270.64
Into a basketIn the basketGo

Overview

SLS switch 3-pole E characteristic 32A for QuickConnect busbar. SH switch according to DIN0641-21 and dimensional standard DIN 43880 size 6. SLS in different pole design, single pole switching, with separate contact position indicator. Plug-in contact for direct busbar mounting. The standard multifunctional lock enables the following locking: for the customer to prevent accidental or deliberate switching, for the installer with a padlock when working in the system, for the VNB with a sealing wire, padlock or special key.

Property Value
Number of poles: 3
Rated current: 32 A
Rated voltage: 400 V
Triggering characteristic: E
Protection class (IP): IP20
Mounting type: Busbar
Rated insulation voltage Ui: 690 V
Frequency: 50 Hz
Pollution degree: 3
Rated breaking capacity: 25 kA
Rated impulse withstand voltage: 6 kV
Overvoltage category: 4
Switching neutral conductor: no

Characteristics

Rated breaking capacity25 kA
ManufacturerHAGER
HANHTS332E
GTIN3250613303129
Trigger characteristicsE
Rated insulation voltage Ui690V
Rated voltage400V
Rated current32 A
Frequency50Hz
Switching neutral conductorNo
Mounting typeBusbar
Number of poles3
IP protection)IP20
Degree of contamination3
Overvoltage category4
