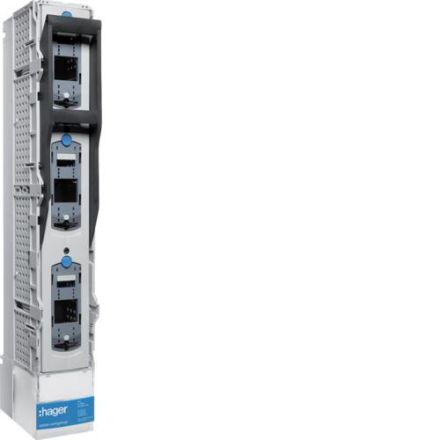

Hager LVSG3CPX switch strip screw connection NH3 185mm

In stock
SKU: 306637
€416.01
Into a basketIn the basketGo

Overview

NH fuse switch-disconnector LV NH3 185mm 3-pole M12 - black. NH3 fuse switch-disconnector 630 A, for busbar mounting, spacing 185 mm. According to DIN EN 60947-3 and IEC 60947-3, suitable for NH fuse links according to DIN 43620-1. Consisting of 3-pole switch strip base and sealable handle insert, touch protection on the handle, with sliding transparent window for voltage testing, all-pole switching, with universal connection screw M12, rust-protected.

Property Value
Connection type main circuit: Screw connection
Design: Fuse switch disconnector
Conditional rated short-circuit current Iq: 120 kA
Double interrupting: no
Max. Rated operating voltage Ue at AC: 690 V
Rated continuous current Iu: 630 A
Rail center distance 40 mm: no
Rail center distance 50 mm: no
Rail center distance 60 mm: no
Number of poles: 3
Size of the fuse link: NH3
Rail center distance 100 mm: no
Rail center distance 185 mm: yes
Triggered message: without

Characteristics

ManufacturerHAGER
HANLVSG3CPX
GTIN4049857124947
Connection type main circuitScrew connection
VersionFuse switch disconnector
Conditional rated short-circuit current Iq120kA
Rated continuous current Iu630A
Max. rated operating voltage Ue at AC690V
Number of poles3
