Hager FZ913WE base for ASV IP41 850x400x100mm

In stock
SKU: 306659
€108.10
Into a basketIn the basketGo

Overview

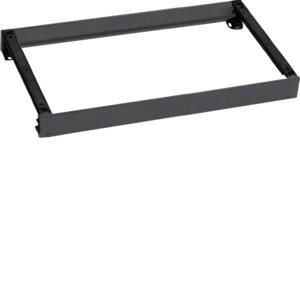

Skirting board for modular distribution board IP41, height 100mm, RAL9005 850x400 (WxD). Skirting board for installation under modular distribution board. With removable panels on all sides, open at the top and bottom. Body made of powder-coated, baked-on and 1.5 mm thick sheet steel. Connection accessories for the distribution board included. Notes:Side panels must be installed (not included in delivery) and a cable clamp rail can be installed.

Property Value
Height: 100 mm
Width: 849 mm
Depth: 375 mm
Suitable for housing width: 850 mm
Suitable for housing depth: 400 mm
Color: black
Suitable for ventilation: no
Design: Complete base
Material: Steel
Suitable for outdoor installation: no
Max. load capacity: 2600 kg

Characteristics

Suitable for housing width850 mm
Suitable for housing depth400 mm
Suitable for ventilationNo
ManufacturerHAGER
HANFZ913WE
GTIN7611919301404
VersionBase complete
Width849 mm
ColorBlack
Suitable for outdoor installationNo
Height100 mm
Depth375 mm
MaterialSteel
