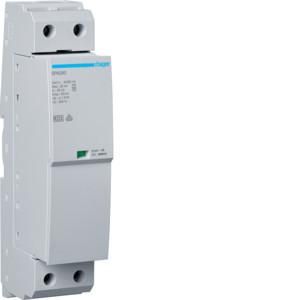

Hager SPA180 T1+T2 1P Iimp 25kA combined surge arrester

Hager SPA180 T1+T2 1P Iimp 25kA combined surge arrester

In stock

SKU: 770308

Price on request

€267.94

€0

Overview

Combined arrester T1+T2 1P Iimp 25kA Up 1.5kV remote signaling contact backup fuse. Combined arrester type 1 and type 2 in accordance with DIN EN 61643-11 (VDE 0675-6-11) with integrated arrester backup fuse. Base element can be mounted variably and plug-on protection module can be replaced. Variable wiring in 3+1, 4+0 and 3+0 circuits using suitable phase rails. Combined arrester with remote signaling contact for monitoring device (potential-free changeover contact), function/defect display by marking in the viewing window, encapsulated, non-blow-out design. For use in switchgear with prospective short-circuit currents up to 100 kAeff, energetic coordination according to DIN EN 62305-4 (VDE 0185-305-4) to type 2 and 3 arresters and directly to the terminal device.

Property	Value
Protection level LN:	1.5 kV
Lightning impulse current (10/350 µs):	25 kA
Nominal discharge current (8/20):	25 kA
Highest continuous voltage AC:	264 V
Nominal voltage AC:	240 V
Protection level:	1.5 kV
Follow current extinguishing capacity:	50 kA
Mounting type:	DIN rail TH15
Size:	2 TE
With remote signaling contact:	yes
Blowing out:	no
Signaling on the device:	optical
Test class type 1:	yes
Suitable for outdoor use:	no
Network type TT:	yes
Network type TN-CS:	yes
Integrated back-up fuse:	yes
Network type TN-S:	yes
Max. conductor cross-section rigid (single/multi-wire):	35 mm²
Max. Conductor cross-section flexible (fine-stranded):	35 mm²
Network type other:	no
Network type TN:	yes
Network type TN-C:	yes
Number of conductors (without earth):	1
Protection class (IP):	IP20
