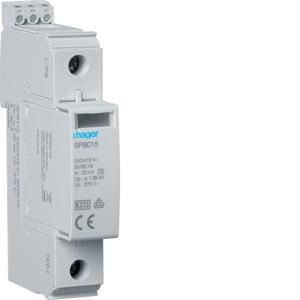

Hager SPB115 T2 1P 40kA TNC fault indication surge arrester

Hager SPB115 T2 1P 40kA TNC fault indication surge arrester

In stock

SKU: 770312

Price on request

€59.25

€0

Overview

Surge arrester T2 1P 40kA TNC defect indication + contact. Single-channel surge arrester with high-performance varistor type 2, for protecting single-phase and multi-phase networks. Independent thermal monitoring of the varistor. Disconnection from the network and optical defect indication on the plug in the event of overload. Additional changeover contact for remote defect indication. Two-part module that can be connected in series, consisting of a base element and protective plug. Biconnect terminals for connecting round conductors and wiring bridges. Labeling option on the base element.

Property	Value
Protection level:	1.35 kV
Nominal discharge current (8/20):	20 kA
Highest continuous voltage AC:	275 V
Nominal voltage AC:	240 V
Protection level LN:	1.35 kV
Mounting type:	DIN rail TH35
Size:	1 TE
Signaling on the device:	optical
With remote signaling contact:	yes
Test class type 2:	yes
Max. conductor cross-section flexible (fine-stranded):	25 mm²
Max. Conductor cross-section rigid (single/multi-wire):	35 mm²
Protection level N-PE:	1.35 kV
Integrated backup fuse:	no
Protection class (IP):	IP20
Network type TN:	yes
Network type TN-C:	yes
Network type TN-CS:	no
Network type TN-S:	no
Network type TT:	no
Network type other:	no
Number of conductors (without earth):	1
Short-circuit strength (Isccr):	25 kA
Max. discharge current (8/20):	40 kA
