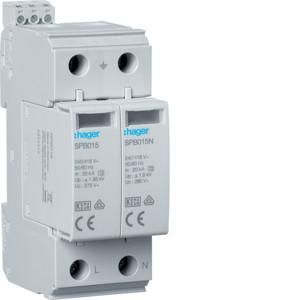

Hager SPB215 T2 2P 40kA TT/TNS fault indication surge arrester

In stock
SKU: 770314
€127.54
Into a basketIn the basketGo

Overview

Surge arrester T2 2P 40kA TT/TNS defect indication + contact. Type 2 surge arrester in 1+1 circuit for protecting 1-phase TT and TN-S systems. Consists of a double base element, a protective plug with temperature-monitored high-performance varistor and a plug as a total current spark gap with dynamic disconnection device. Optical defect indication on the plugs in the event of overload. Changeover contact for remote defect indication. Connections for the active conductors from below, for earth/PE and remote indication contact from above. Biconnect terminals for connecting round conductors and wiring bridges. Labeling option on the base element.

Property Value
Protection level: 1.35 kV
Nominal discharge current (8/20): 20 kA
Highest continuous voltage AC: 275 V
Nominal voltage AC: 240 V
Protection level LN: 1.35 kV
Mounting type: DIN rail TH35
Size: 2 TE
Signaling on the device: optical
With remote signaling contact: yes
Test class type 2: yes
Max. conductor cross-section flexible (fine-stranded): 25 mm²
Max. Conductor cross-section rigid (single/multi-wire): 35 mm²
Protection level N-PE: 1.6 kV
Integrated backup fuse: no
Protection class (IP): IP20
Network type TN: yes
Network type TN-C: no
Network type TN-CS: yes
Network type TN-S: yes
Network type TT: yes
Network type other: no
Number of conductors (without earth): 2
Short-circuit strength (Isccr): 25 kA
Max. discharge current (8/20): 40 kA

Characteristics

Max. conductor cross-section rigid (single/multi-wire)35 mm²
Max. conductor cross-section flexible (fine-stranded)25 mm²
Protection level1.35 kV
With remote signaling contactYes
Number of conductors (excluding earth)2
Network form TTYes
Network type TN-SYes
Max. discharge current (8/20)40 kA
Test class type 2Yes
Network form TNYes
Network type TN-CNo
Network type TN-C-SYes
Short circuit strength (Isccr)25 kA
Protection level L-N1.35 kV
Protection level N-PE1.6 kV
Integrated backup fuseNo
HABSPB215 T2 2P 40kA TT/TNS fault indication
ManufacturerHAGER
HANSPB215
GTIN3250615514882
Size2 HP
Highest continuous voltage AC275V
Mounting typeDIN rail TH35
Nominal discharge current (8/20)20kA
Nominal voltage AC240V
IP protection)IP20
Signaling on the deviceOptical
