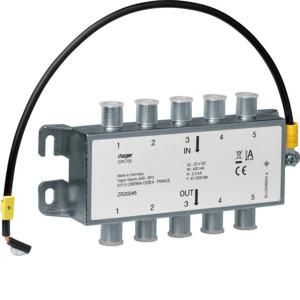

Hager SPK700 Coaxial for SAT and BK systems Surge Arrester

In stock
SKU: 770348
€154.76
Into a basketIn the basketGo

Overview

Coaxial surge arrester for satellite and cable systems. Surge protection device for antenna distributors or multiswitches of satellite reception systems. Five-channel version for signals from either satellite systems or terrestrial antennas. Connection for potential equalization on the outside of the housing. Plastic feet for wall mounting and insulated installation on mounting surfaces with external potential.

Property Value
Signaling on the device: without
Mounting type: DIN rail TH35
Nominal discharge current (8/20): 2.5 kA
Connection 1: F-Connector
Maximum continuous voltage DC: 20 V
Protection level wire/earth: 500 V
With remote signaling contact: no
Explosion-tested version: no
Arrester monitoring: no
Nominal voltage DC: 20 V
Frequency: 0.00005 to 0.00006 MHz
Limit frequency: 2500 MHz

Characteristics

Explosion-tested versionNo
With remote signaling contactNo
Connection 1F-Connector
Highest continuous voltage DC20 V
Nominal voltage DC20 V
Protection level wire/earth500 V
Limit frequency2500 MHz
HABSPK700 Coaxial for SAT and BK systems
ManufacturerHAGER
HANSPK700
GTIN3250615515094
Frequency0.00005 to 0.00006 MHz
Mounting typeDIN rail TH35
Nominal discharge current (8/20)2.5kA
Signaling on the deviceWithout
