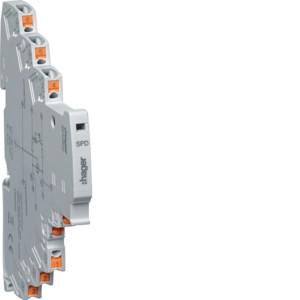

Hager SPK802 2P for weather station 4-20mA surge arrester

In stock
SKU: 770332
€135.19
Into a basketIn the basketGo

Overview

Surge arrester 2P for weather station 4-20mA status display. Surge protection with integrated status display and knife separation for a 2-wire, floating signal circuit. Device can be mounted on a mounting rail with individual labeling area on the front. Internal protective circuit and QR code with link to online documentation shown on the product page. Integrated disconnection device with optical status display without auxiliary power on the device and possibility for joint remote signaling of up to 40 protective devices.

Property Value
Signaling on the device: optical
Mounting type: DIN rail TH35
Nominal discharge current (8/20): 5 kA
Connection 1: Terminal
Maximum continuous voltage DC: 30 V
Maximum continuous voltage AC: 21 V
Protection level wire/wire: 80 V
Protection level wire/earth: 145 V
With remote signaling contact: yes
Explosion-tested version: no
Arrester monitoring: no
Nominal voltage DC: 24 V
Frequency: 0.00005 to 0.00006 MHz
Nominal voltage AC: 24 V
Lightning impulse current (10/350 µs): 0.5 kA

Characteristics

Explosion-tested versionNo
Lightning surge current (10/350 µs)0.5 kA
With remote signaling contactYes
Connection 1Clamp
Highest continuous voltage DC30 V
Nominal voltage DC24 V
Protection level wire/wire80 V
Protection level wire/earth145 V
HABSPK802 2P for weather station 4-20mA
ManufacturerHAGER
HANSPK802
GTIN3250615515100
Frequency0.00005 to 0.00006 MHz
Highest continuous voltage AC21V
Mounting typeDIN rail TH35
Nominal discharge current (8/20)5kA
Nominal voltage AC24V
Signaling on the deviceOptical
Hager SPK802 2P for weather station 4-20mA surge arrester
Hager SPK802 2P for weather station 4-20mA surge arrester
€135.19
Into a basketIn the basketGo
