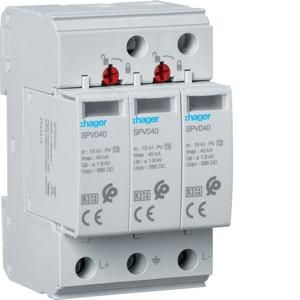

Hager SPV340 T2 3P 40kA Photovoltaic Surge Arrester

In stock

SKU: 770343

Price on request

€165.03

€0

Overview

Surge arrester T2 3P 40kA Photovoltaic. Surge arrester for 2-pole insulated and grounded PV direct voltage systems up to 1000 V DC, for mounting rails, 3-pole base element, three pluggable temperature-monitored protective elements, status message on each plug.

Property	Value
Protection level:	3.7 kV
Nominal discharge current (8/20):	15 kA
Highest continuous voltage AC:	1170 V
Highest continuous voltage DC:	1170 V
Nominal voltage DC:	1000 V
Nominal voltage AC:	1000 V
Protection level LN:	3.7 kV
Mounting type:	DIN rail TH35
Size:	3 TE
Signaling on the device:	optical
With remote signaling contact:	no
Test class type 2:	yes
Max. conductor cross-section flexible (fine-stranded):	25 mm²
Max. Conductor cross-section rigid (single/multi-wire):	35 mm²
Protection level N-PE:	3.7 kV
Integrated backup fuse:	no
Protection class (IP):	IP20
Network type DC:	yes
Network type TN-CS:	yes
Network type other:	yes
Number of conductors (without earth):	2
Short-circuit strength (Isccr):	2 kA
