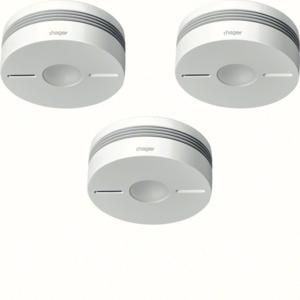

Hager TG553A wireless smoke alarm set Q 3xTG550A white

In stock
SKU: 158517
€274.37
Into a basketIn the basketGo

Overview

Wireless smoke alarm set Komfort Q, 3x TG550A, IR alarm stop, white. Wireless smoke alarm package consisting of 3 TG550A with small size and attractive design language according to DIN EN 14604 with additional validation according to the increased test requirements of Q validation based on the vfdb guidelines 14-01 'Association for the Promotion of German Fire Protection' (vfdb). Increased test criteria against the penetration of foreign bodies and increased protection against damp heat, oxidation and EMC, as well as better temperature change stress. Serves for the early detection and signaling of fires with smoke development in the interior of apartments or apartment-like areas, as well as mobile homes, caravans and camper vans. Can be installed as a single device or as a wireless network with up to max. 40 detectors with additional activation of any detector in the wireless network as a repeater to increase the range. The radio network can be set up without tools using push button mode and can be checked using the integrated range indicator using LEDs. Patented alarm stop using any manufacturer-independent IR remote control, by pressing the detector button or optionally using the radio network with a radio pressure button TG558B alarm stop. Manual alarm triggering is optionally possible by integrating a radio pressure button TG558A for the house alarm. Optional control of external signal or peripheral devices using the RXA005X relay socket. Processor-controlled function self-test of all relevant components (every 10 seconds) and PGSA technology with independent algorithmic sensitivity adjustment in the event of interference such as dust to maintain functional reliability. Large function and reset button with integrated white light cone in the event of a fire and during the test alarm. Acoustic signal (85 dB at 3 m) and red flashing LED for alarm. Acoustic signal in the event of a low battery, contamination or fault message with acoustic signaling and yellow LED. Time-limited deactivation function for smoke detection to suppress false alarms from the detector for approx. 12 minutes with automatic reset function to normal operation. Nighttime sleep function to delay fault messages until the day. Fault messages can be suppressed for a further 8 hours by acknowledging the reset button. The fault of a dirty detection unit/detector head cannot be reset as long as the false message is still being analyzed in the evaluation unit. Dismantling and theft protection can be activated, after which unlocking is only possible with a screwdriver with a maximum size of 7mm. The detector is automatically activated when screwed into the base. Battery life of at least 10 years using an encapsulated lithium battery. Guarantee period of 10 years, the other guarantee and conditions can be found at www.hager.com/garantie.

Property Value
Color: white
Height: 49 mm
Diameter: 116 mm
Volume: 85 dB(A)
RAL number (similar): 9010
With Q-Label: yes
Response temperature: -10 °C
Width: 116 mm
Mounting type: other
With backup battery: no
With voltage display: no
Primary power supply: Battery/rechargeable battery
Type of test/pause button: Combination
Length: 116 mm
Supplied backup battery: without
Standalone: no
Operating principle: optical
Max. Number of networkable devices: 40
Protection class (IP): IP32
Smoke switch: no
Networkable via radio (optional): no
Networkable via cable: no
Networkable via radio (standard): yes
Type of supply voltage: DC
Supply voltage: 6 V

Characteristics

Voltage85 dB(A)
Type of voltage of the supply voltageDC
Supply voltage6 V
StandaloneNo
ManufacturerHAGER
HANTG553A
GTIN3599430009693
Width116 mm
Diameter116 mm
ColorWhite
Height49 mm
Length116 mm
Mounting typeOther
RAL number (similar)9010
IP protection)IP32
Supply voltage6V
