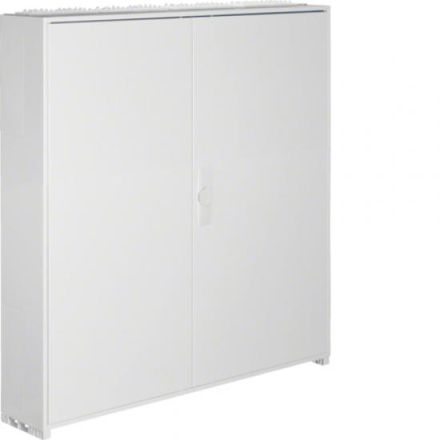

Cabinet, univers, IP44, SK II, 1100 x 1050 x 205 mm, empty. Wall-mounted cabinet for indoor installation with VDE certificate (production monitoring) in accordance with DIN EN 61439-1/-3 and dimensional standard DIN 43870, for surface-mounted, flush-mounted or partially recessed installation. For setting up a low-voltage distribution system up to 400 A, 3AC 230/400 V 50 Hz. Protection type IP44, protection class II, air and creepage distances in accordance with DIN0110-1/-2. Consisting of cabinet with door made of powder-coated, baked-on, sturdily profiled 1 mm thick sheet steel, inner lining made of plastic. Push-through flanges installed at the top and bottom of each field, rear pre-punching in the plastic part and busbar bushings as side pre-punching on both sides in the lower area. Door flush with the front with internal, adjustable hinges, can be hinged on the right or left with an opening angle of 110 degrees. Door with sash lock, from a width of 800 mm and for all cabinets from a height of 1250 mm with a bar lock with three-point locking. Note: Door lock can be replaced with other locks. Cabinet can be flanged next to each other and one above the other.
