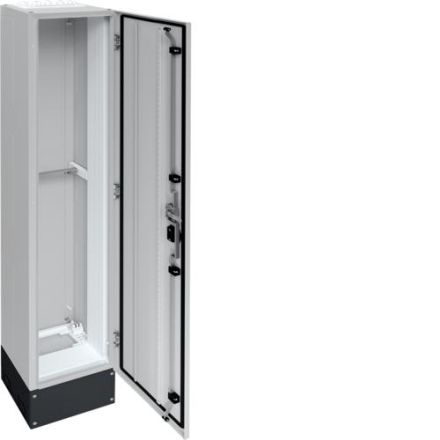

Cabinet, universal, IP55, SK I, 1850 x 300 x 275 + 200 mm base. Stand-alone distributor for indoor installation with VDE certificate (production monitoring) according to DIN EN 61439-1/-2/-3 and dimensional standard DIN 43 870, for surface mounting. For setting up a low-voltage distribution up to 800 A, 3AC 230/400 V 50 Hz. Protection type IP55, protection class I or II, air and creepage distances according to DIN0110-1/-2. Consists of cabinet with door made of powder-coated, baked, profiled 1.5 mm thick sheet steel. Push-through flanges at the top, open at the bottom (cable inserts can be installed). Busbar bushings as side knockouts. Door surface-mounted, with internal hinges, door stop on the right as standard, changeable, with 110 degree opening angle. Supplied as standard with swivel lever lock, DIN profile half cylinder can be installed. Horizontal support rail included for stabilization in the cabinet. Door seal foamed all around, temperature-resistant and oil-resistant. Skirting board (height 200 mm) fitted as standard with removable front panel. Note: Wall and floor fastening required! Door lock can be replaced with other locks. Cabinet can be flanged next to each other.
