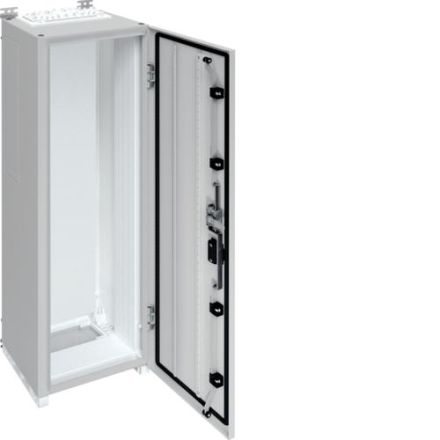

Cabinet, universal, IP55, SK II, 1100 x 300 x 275 mm. Wall-mounted cabinet for indoor installation with VDE certificate (production monitoring) in accordance with DIN EN 61439-1/-2/-3 and dimensional standard DIN 43870, for surface mounting. For setting up a low-voltage distribution system up to 800 A, 3AC, 690 V 50 Hz. Protection type IP55, protection class II, air and creepage distances in accordance with DIN0110-1/-2. Consists of a cabinet with a door made of powder-coated, baked-on, profiled 1.5 mm thick sheet steel. Push-through flanges at the top, ISO flange plates with metric knockouts and quick-locking installed at the bottom for each panel. Busbar bushings as side knockouts. Surface-mounted door with internal hinges, door stop on the right as standard, reversible, 110 degree opening angle. With swivel lever lock as standard, DIN profile half cylinder can be installed. Door seal foamed all around, temperature and oil resistant. Cabinet can be flanged next to each other and one above the other.
