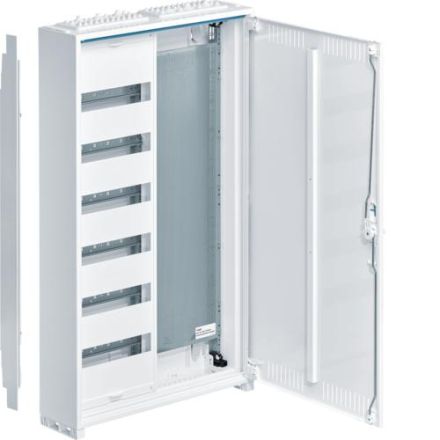

Field distributor AP, univers, IP31, SKII, 72PLE+media field, with closed door, 950x550x161mm, QC. Field distributor in accordance with DIN EN 61 439-1/-3, dimensional standard DIN 43 870. For installation of devices up to 125 A, air and creepage distances in accordance with DIN EN 60664-1. Consists of a cabinet with a slotted sheet metal door made of powder-coated and baked-on sheet steel. From a cabinet width of 800 mm (3-field), two-door construction. Right-hand doors maximum 2-field wide. Complete cabinet with installation kit on the left equipped with profiled support rails, 7.5 mm high top hat rails with a centre distance of 125 mm and matching contact protection covers, including PE/N QuickConnect terminals mounted on supports, and with multimedia field on the right equipped with plastic panels on profiled support rails without contact protection covers. Internal contact protection (SKII) made of plastic, cable entries at the top/bottom through removable plastic flange plates and continuous vertical partitioning between multimedia and energy field. Door with internal adjustable hinges and an opening angle of 130°. Doors can be hinged on the right and left. Door lock as standard with three-point bar lock (from cabinet width 800 mm) and folding handle that can be sealed. For interchangeable locking systems, see accessories.
