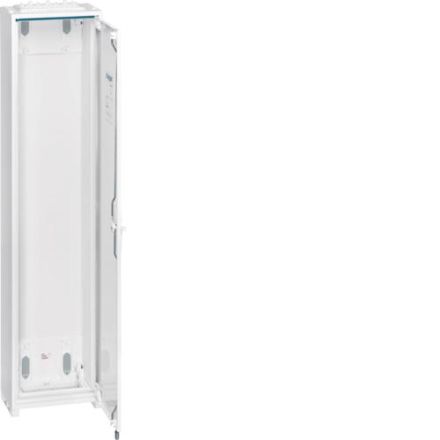

Hager FWB81D AP IP30 SKII 1250x300x160mm field distributor

In stock
SKU: 411045
€332.93
Into a basketIn the basketGo

Overview

Field distributor AP, univ., IP44, SKII, 96PLE, 1x8 rows 1250x300x161mm, empty with door. Field distributor in accordance with DIN EN 61 439-1/-3, dimensional standard in accordance with DIN 43 870. For installation of devices up to 125 A, air and creepage distances in accordance with DIN EN 60664-1. Consisting of cabinet with door made of powder-coated and baked-on sheet steel. Two-door construction for cabinet widths of 800 mm and over (3-field). Right-hand doors maximum 2-field wide. Empty cabinet without installation kit. Cable entries at the top/bottom through removable, flexible plastic flange plates, also replaceable. Door with internal adjustable hinges and an opening angle of 110°. Doors can be hinged on the right and left, door hinge can be changed without tools. Door lock as standard with three-point bar lock and sealable folding handle. Replaceable lockable locking systems and doors, see accessories.

Property Value
Height: 1250 mm
Width: 300 mm
Depth: 165 mm
Inner depth: 156 mm
Protection type (IP): IP44
Protection class: II
Impact resistance: IK09
Material of the housing: steel
RAL number: 9010
Mounting type: other
Suitable for outdoor use: no
Surface: powder-coated
Suitable for lightning protection: no
Mounting option: yes
With mounting plate: no
Number of cable entries: 4
Number of modules: 12
Number of openings for flange plates: 2
Number of rows: 8
Type of cover: Door
Type of door: without
Cover design: closed
Width in division units: 12
Functional integrity: without
Material thickness housing: 1 mm
Material thickness door/cover: 1 mm
With lock: no
Rated current (In): 125 A
Transparent cover/door: no
Color: white

Characteristics

ManufacturerHAGER
HANFWB81D
GTIN3250612740185
Cultivation optionYes
Number of cable entries4
Number of modules12
Number of rows8
Number of openings for flange plates2
Type of coverDoor
Type of doorWithout
Cover designClosed
Width300 mm
Width in pitch units12
ColorWhite
Functional preservationWithout
Suitable for outdoor useNo
Suitable for lightning protectionNo
Height1250 mm
Internal depth156 mm
Housing material thickness1 mm
Material thickness door/lid1 mm
With mounting plateNo
With lockNo
Mounting typeOther
Nominal current (In)125A
SurfacePowder coated
RAL number9010
Impact resistanceIK09
IP protection)IP44
Protection classII
Depth165 mm
Transparent lid/doorNo
Housing materialSteel
