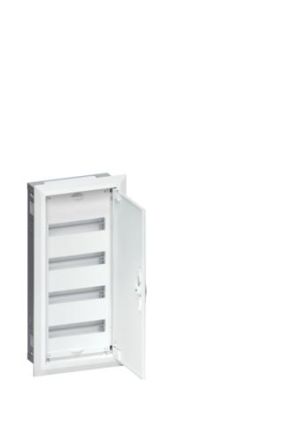

Field distributor UP 48PLE with univers, IP30, SKII, niche dimensions 657x315x115mm. Field distributor UP/HW certified according to DIN EN 61 439-1/-3, dimension standard according to DIN 43870. For installation of devices up to 125 A, air and creepage distances according to DIN EN 60664-1, protection class IP30. Consists of cabinet, cover frame and sheet steel door, powder-coated in RAL 9010 (pure white). Complete distributor with installation kit equipped with profiled mounting rails, 7.5 mm high top-hat rails with 125 mm center distance and matching contact protection covers (SKII) made of plastic, including 1xPE and 2xN QuickConnect terminal blocks mounted on supports. Cable entries at the top/bottom through removable plastic flange plates with pre-punched holes and integrated cable strain relief. Power entries that can be knocked out at the side and rear. Door with internal adjustable hinges and an opening angle of 110°. Doors can be hinged on the right and left, door hinge can be changed without tools. Door lock with sash lock and folding handle that can be sealed as standard. Two-door design for cabinet widths of 800 mm and over (3 panels). Right-hand doors maximum 2 panels wide. With double door with bar lock. Frame depth or overhang 13 mm. Note: Interchangeable locking systems possible.
