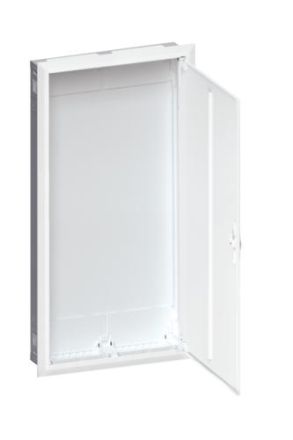

Field distributor UP 168PLE, empty, IP30, SKII, niche dimensions 1107x565x115mm. Field distributor UP/HW certified according to DIN EN 61 439-1/-3, dimension standard according to DIN 43 870. For installation of devices up to 125 A, air and creepage distances according to DIN EN 60664-1, protection class IP30. Consisting of cabinet, cover frame and sheet steel door, powder-coated in RAL 9010 (pure white). Empty cabinet without installation kit, without QuickConnect terminal blocks, prepared for the interior installation of the univers FW support frame and contact protection covers. Cable entries at the top/bottom through removable plastic flange plates with pre-punched holes and integrated cable strain relief. Power entries can be knocked out at the side and rear. Door with internal adjustable hinges and an opening angle of 110°. Doors can be hinged on the right or left, door hinge can be changed without tools. Door lock with sash lock and folding handle as standard, sealable. Two-door construction for cabinet widths of 800mm and over (3 panels). Right-hand doors maximum 2 panels wide. With double doors with bar lock. Frame depth or overhang 13 mm. Note: Optionally interchangeable locking systems.
