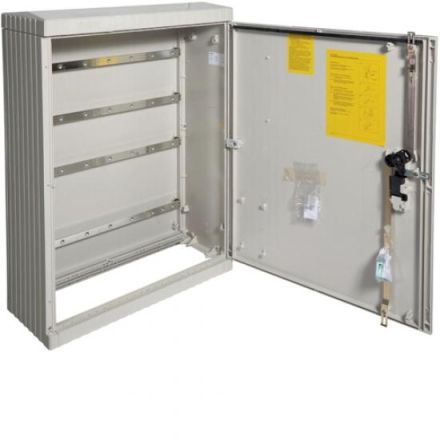

Cable distribution cabinet, ZAS, size 1/1005, with busbar system, 4 x E-Cu. Cable distribution cabinet in accordance with DIN EN 61439, protection class IP 44, made of glass fiber reinforced polyester FS 833.5 in accordance with DIN EN 14598 with recycled material. Cable distribution cabinet as empty cabinet, cabinet with mounting plate (PVC) or cabinet with busbar system for the installation of NH fuse switch disconnectors. Profiled housing in rib design. Door with opening angle of 180 degrees when free-standing and 90 degrees when mounted in series. Doors can be removed, door can be hinged on the left or right. Locking with swivel lever, three-point bascule lock, double locking, a profile half cylinder is installed. Size 2 cabinets can be fitted with two independently lockable doors. Ventilation takes place via labyrinth-like ventilation ducts and is puncture-proof due to the ingress of foreign bodies. Note: Depending on the model, the cable distribution cabinet can be permanently mounted with a buried base, floor-mounted base or wall bracket (for indoor use only). In the case of cable distribution cabinets with a busbar system, the free assembly areas must be provided with a contact protection cover.
