Hager ZAL85U cable distribution cabinet for univers N 1370x1465x320mm

In stock
SKU: 310094
€3,201.21
Into a basketIn the basketGo

Overview

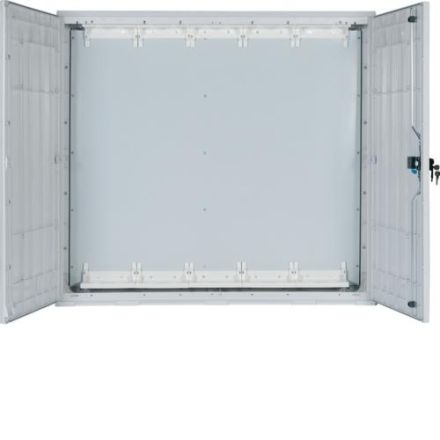

Cable distribution cabinet, for universN, 1370 x 1465 x 320mm. Cable distribution cabinet in accordance with DIN EN 61439, protection class IP 44, made of glass fiber reinforced polyester FS 833.5 in accordance with DIN EN 14598. Cable distribution cabinet as empty cabinet, prepared for the installation of univers N. Profiled housing in rib design. Door with opening angle of 180 degrees when free-standing and 90 degrees when mounted in series. Doors can be removed. Locking with swivel lever, three-point bascule lock, double locking, a profile half cylinder is installed. Ventilation takes place via labyrinth-like ventilation ducts and is puncture-proof due to the ingress of foreign bodies. Note: Depending on the version, the cable distribution cabinet can be permanently mounted with a buried base, floor-mounted base or wall bracket. For cable distribution cabinets with a busbar system, the free assembly areas must be provided with a contact protection cover. Note: The cable distribution cabinet size. 3 differs visually from the rest of the portfolio, the door handle is arranged horizontally, the rib design is different and there is a minimal height difference to the other cabinet sizes of the same height.

Property Value
Nominal voltage: 230 V
Material: Composite
Surface: untreated
Protection class (IP), cabinet: IP44
Color: gray
RAL number: 7035
Width: 1465 mm
Height: 1370 mm
Depth: 320 mm
Mounting: Floor
Equipped with busbar: no
Protection class (IP), busbar: other
Equipped with connectors: no
With earthing: no
With stand: no
With base plate: no
With mounting plate: yes

Characteristics

ManufacturerHAGER
HANZAL85U
GTIN3250611073444
Width1465 mm
ColorGray
Height1370 mm
With mounting plateYes
Equipped with connectorsNo
Nominal voltage230V
SurfaceUntreated
RAL number7035
Depth320 mm
MaterialComposite
