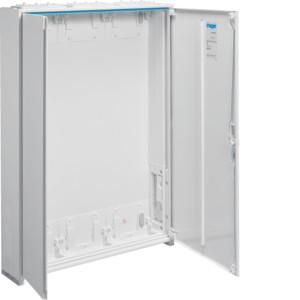

Meter cabinet, IP44, SKII, 1100x800x160mm, 252PLE, univers Z. - Wall-mounted cabinet or wall-mounted cabinet with VDE mark (production monitoring) according to DIN0603-1 / DIN VV 0603-102 - Dimensional standard according to DIN 43 870 - for surface-mounted or flush-mounted installation or partially recessed installation - for setting up a meter panel system up to 355 A, AC 230/400 V /50 Hz - Protection class IP44, IP54, DIN0470-1 - Protection class II - Protection class IP3X behind the door - Air and creepage distances according to DIN0603-1 - Consisting of cabinet with door from 800 mm width with two doors - Body and doors made of powder-coated, baked, stable profiled 1 mm thick sheet steel, inner lining made of insulating material - top and bottom 2-component cable entries that can be removed without tools - Back with pre-punched holes in the plastic part for installing 2-component cable entries - Removable busbar bushings integrated on the side with pre-punched holes for cable entries - Door flush with the front with adjustable hinges on the inside, can be opened on the right or left, opening angle = 110° - Door lock with sash and rod lock as a three-point lock - Door lock can be replaced with other locks - Cabinets can be mounted next to each other and on top of each other - Cabinets can be connected next to each other and on top of each other mechanically and electrically
