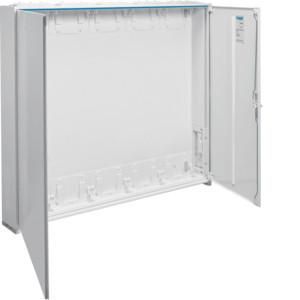

Empty cabinet, universZ, 1100x1300x160mm, protection class II, IP44, 420 space units. - Wall-mounted cabinet or wall-mounted cabinet with VDE mark (production monitoring) according to DIN0603-1 / DIN VV 0603-102 - Dimensional standard according to DIN 43 870 - for surface-mounted or flush-mounted installation or partially recessed installation - for setting up a metering system up to 355 A, AC 230/400 V /50 Hz - Protection class IP44, IP54, DIN0470-1 - Protection class II - Protection class IP3X behind the door - Air and creepage distances according to DIN0603-1 - Consisting of cabinet with door, from 800 mm width with two doors - Body and doors made of powder-coated, baked, stable profiled 1 mm thick steel sheet, inner lining made of insulating material - top and bottom 2-component cable entries that can be removed without tools - rear with pre-punched holes in the plastic part for the installation of 2-component cable entries - side integrated Removable busbar bushings with pre-punched holes for cable entries - Door flush with the front with internal, adjustable hinges, can be hinged on the right or left, opening angle = 110° - Door lock with sash and rod lock as three-point locking - Door lock replaceable, can be replaced by other locks - Cabinets can be mounted next to each other and on top of each other - Cabinets can be connected mechanically and electrically next to each other and on top of each other
