TEHALIT BKWD300070 floor duct 200x70-100

In stock
SKU: 309059
€290.94
Into a basketIn the basketGo

Overview

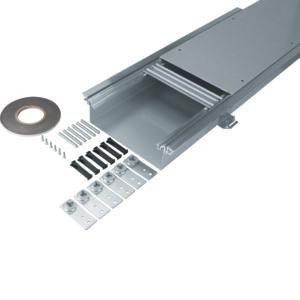

Floor duct flush with screed with tray/sealing option steel BKWD 300x (70-110) mm. Screed-flush installation duct according to DIN EN 50085-1 and DIN EN 50085-2-2, with sealing option for blind covers and covers, with floor pan, consisting of: channel side profiles made of aluminum, crossbars, screed anchors, floor covering application profiles (0 or 4 mm) made of plastic, leveling clamps with channel connectors and leveling pins, screwed blind covers, suitable for dry-maintained floors, acoustically decoupled, pre-assembled at the factory.

Property Value
Number of intended installation units: 3
Option for decoupling lower part from building structure: yes
Material thickness of cover: 3 mm
Max. number of moves: 1
Min. Screed height: 70 mm
With partition wall: no
Surface side wall/floor pan: galvanized
Partition wall fastening: other
Width: 300 mm
Leveling range: 70 to 110 mm
Locking lid fastening: no
Floor care: dry
Bottom pan: yes
Side wall/base pan material: steel
Lid material: steel
Cover mounting opening: no
Length: 2400 mm

Characteristics

Minimal order2 meters
ManufacturerTEHALIT
HANBKWD300070
GTIN4012002241295
Width300 mm
Length2400 mm
TEHALIT BKWD300070 floor duct 200x70-100
TEHALIT BKWD300070 floor duct 200x70-100
€290.94
Into a basketIn the basketGo
