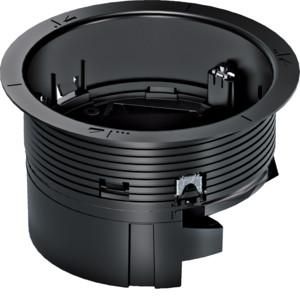

TEHALIT BSR02D for 2x45 sockets for BS installation box

In stock
SKU: 832136
€48.35
Into a basketIn the basketGo

Overview

Installation box for 2x45 sockets for floor socket R02. Installation box for floor socket in accordance with DIN EN 50085-1 and DIN EN 50085-2-2 including mounting kit, with carpet protection frame. For holding two 230 V earthed sockets and two data/multimedia connections. Wide support edge to prevent slipping. 3 fastening claws for secure fixing. Incl. 2 strain reliefs. 2 strain reliefs can be fitted to the device holder and the base of the box. A partition wall is included in the scope of delivery for installation in system floors or screed floors indoors.

Property Value
Installation diameter: 122 mm
Outer diameter: 142 mm
Number of device cups: 1
With floor covering recess: no
RAL number: 9005
Color: black
Suitable for Wet care: no
Suitable for underfloor duct: no
Suitable for hollow floor installation: yes
Suitable for raised floor installation: yes
Floor covering protection frame: yes
Min. installation depth: 86 mm
Number of SCHUKO sockets: 2

Characteristics

Number of SCHUKO sockets2
HABBSR02D for 2x45 sockets for BS
ManufacturerTEHALIT
HANBSR02D
GTIN4012740027472
Outer diameter142 mm
Installation diameter122 mm
ColorBlack
RAL number9005
TEHALIT BSR02D for 2x45 sockets for BS installation box
