TEHALIT BSR02D02 BSD02 2x Keystone 2-f M tube sil installation box

In stock
SKU: 832240
€221.02
Into a basketIn the basketGo

Overview

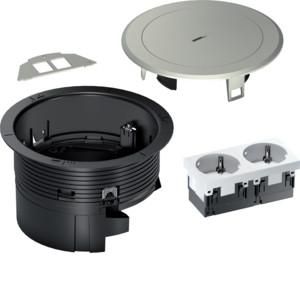

Installation box R02, 2x SCHUKO, Keystone type 01 2-f, metal tube silver. Floor socket with metal cover and integrated reversible tube silver according to DIN EN 50085-1 and DIN EN 50085-2-2 including mounting set, with carpet protection frame including a 2-way SCHUKO socket and a mounting plate for 2 data connection sockets. Use in wet-cleaned floors indoors in accordance with DIN EN 50085-2-2.

Property Value
Installation diameter: 122 mm
Outer diameter: 150 mm
Number of device cups: 1
With floor covering recess: no
Color: Silver
Suitable for wet cleaning: yes
Suitable for Underfloor duct: no
Suitable for hollow floor installation: yes
Suitable for raised floor installation: yes
Floor covering protection frame: yes
Min. installation depth: 86 mm
Number of SCHUKO sockets: 2

Characteristics

Number of SCHUKO sockets2
HABBSD02 2x Keystone 2-f M tube sil
ManufacturerTEHALIT
HANBSR02D02
GTIN4012740028660
Outer diameter150 mm
Installation diameter122 mm
ColorSilver
TEHALIT BSR02D02 BSD02 2x Keystone 2-f M tube sil installation box
