TEHALIT WXF202 Keystone 1xRJ45 19.3x14.8mm adapter frame

In stock

SKU: 835758

Price on request

€10.88

€0

Overview

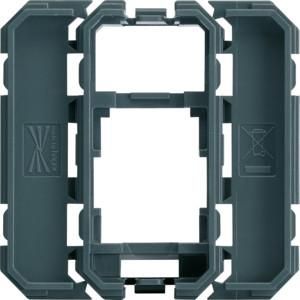

Keystone adapter frame 1xRJ45 19.3x14.8 mm, module width 22.5x45 or 45x45 mm. Rastec 45 Keystone adapter frame 1xRJ45 19.3x14.8 mm. The device corresponds to a module width of 45 x 45 mm or 22.5 x 45 mm (by breaking out the side parts), can be aligned and is supplied without a cover. For installation as a system component.

Property	Value
Mounting type:	Clamp fastening
Color:	gray
RAL number (similar):	7011
Device height:	45 mm
Device width:	45 mm
Device depth:	21.5 mm
Labeling field:	without labeling field
Use:	Modular jack
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	untreated
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Base element
Support ring:	no
With print:	no
Material:	other
Material quality:	other
Surface finish:	matt
With strain relief:	no
Lamp terminal:	no
Number of modules (with modular construction):	2
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	1
Sockets shielded:	no
Housing shielded:	no
Min. depth of device box:	22 mm
