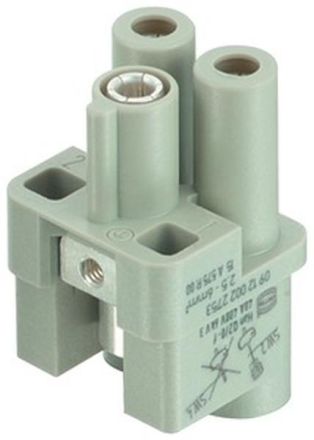

Harting 09120022753 HAN Q 2/0-bu 2.5-6qmm socket

In stock

SKU: 625146

Price on request

€29.68

€0

Overview

Inserts, axial screw connection, socket, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 40 A, size: 3 A, contacts: 2, conductor cross-section: 2.5...6 mm², copper alloy, silver-plated

Property	Value
Number of poles:	2
Rated current In:	40 A
Rated impulse voltage:	6 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	2.5 to 6 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	400 V
Contact design:	Socket
Pollution level:	3
Material of the contact:	Other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule:	2.5 to 6 mm²
Contact insert without contacts:	no
Material of the contact coating:	Silver
Design of the electrical connection:	Axial screw connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	2
Operating temperature:	-40 to 125 °C
Min. number of mating cycles:	500
