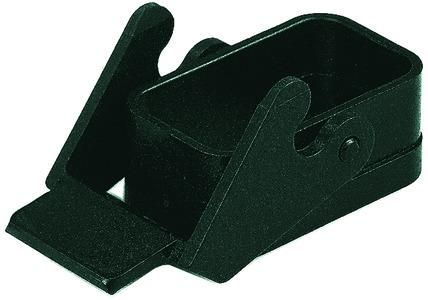

Harting 09120080327 HAN Q 8/0-AGG bulkhead housing

In stock

SKU: 624949

Price on request

€6.65

€0

Overview

Bullet-mounted housing, straight, size: Han-Compact, single lever, polyamide, housing material: polycarbonate, RAL 9005 (jet black), seal material: NBR, protection class: IP65

Property	Value
Width:	28.7 mm
Height:	19.5 mm
Housing design:	Bullet-mounted housing
Protection class (IP), mounted:	IP65/IP67
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	other
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	no
Housing material:	Plastic
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	other
Bracket position:	lower part
Housing colour:	black
Mounting type of cable gland:	without
With nozzle:	no
With seal:	yes
