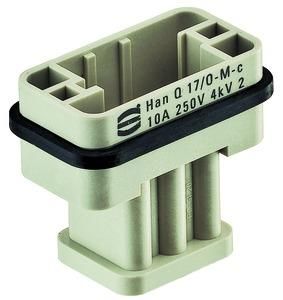

Harting 09120173001 Han Q 17/0-Mc 10A pin contact

In stock

SKU: 625159

Price on request

€19.44

€0

Overview

Inserts, crimp connection, pin, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 10 A, size: Han-Compact, contacts: 17, conductor cross-section: 0.14...2.5 mm²

Property	Value
Number of poles:	17
Rated current In:	10 A
Rated impulse voltage:	2.5 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	2.5 to 0.14 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	250 V
Overvoltage category:	III
Ambient temperature:	125 to -40 °C
Contact design:	Pin
Pollution level:	2
Material of the contact:	Brass
Connectable conductor cross-section, single-wire:	0.14 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.14 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.14 to 2.5 mm²
Contact insert without contacts:	yes
Material of the contact coating:	other
Design of the electrical connection:	Crimp connection
With Wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	17
Operating temperature:	-40 to 125 °C
Min. number of mating cycles:	500
