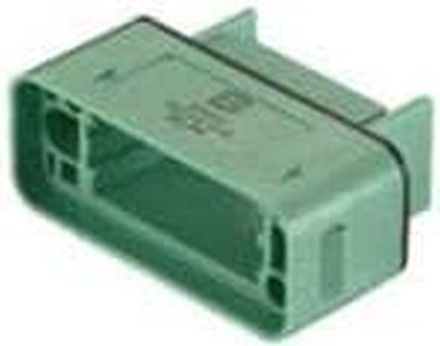

Harting 09140010330 Han GND bulkhead housing

In stock

SKU: 625104

Price on request

€5.32

€0

Overview

Limit temperature: -40 ... +85 °C, Mating cycles: 500, Protection class according to IEC 60529: IP65, Housing color: green, Seal material: NBR, Flammability class according to UL 94: V-0, Net weight: 13.42 g, RoHS: compliant

Property	Value
Housing design:	Body mounting housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 85 °C
Cable feed arrangement:	other
Type of locking:	latching
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	no
With cable gland:	no
UV-resistant:	no
Material of the housing:	Plastic
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	other
Bracket position:	without
Housing color:	green
Cable gland fastening type:	without
With nozzle:	no
With seal:	yes
