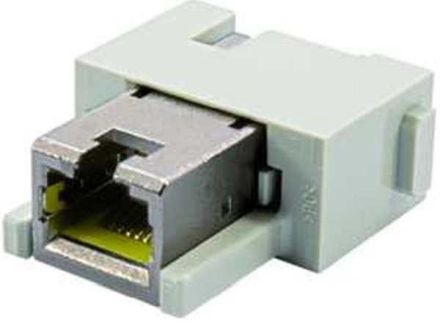

Harting 09140014721 Han RJ45 module socket module

In stock

SKU: 624804

Price on request

€31.23

€0

Overview

Mechanical service life - mating cycles: > = 500, RoHS conformity: Yes, transmission characteristics: Category 5 / Class D up to 100 MHz, in accordance with ISO/IEC 11 801:2002 and EN 50 173-1, series: Han-Modular®, specification: Cat. 5e, number of contacts: 8

Property	Value
Number of poles:	8
Rated current In:	1 A
Rated impulse voltage:	0.8 kV
Material of the connector insert:	Thermoplastic
Rated voltage:	50 V
Ambient temperature:	-40 to 85 °C
Contact design:	socket
Pollution level:	3
Material of the contact:	other
Contact insert without contacts:	no
Material of the contact coating:	other
Design of the electrical connection:	other
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	8
Operating temperature:	-40 to 70 °C
Min. number of mating cycles:	500
