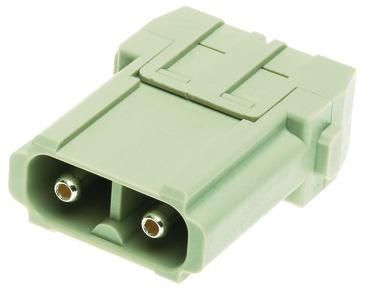

Harting 09140022601 Han 40A 2.5-8qmm pin contact

In stock

SKU: 625160

Price on request

€12.82

€0

Overview

Han 40 A module, single module, axial screw connection, pin, contacts: 2, conductor cross-section: 2.5...8 mm², rated current: 40 A, polycarbonate (PC), RAL 7032 (pebble grey), copper alloy, silver-plated

Property	Value
Number of poles:	2
Rated current In:	40 A
Rated impulse voltage:	8 kV
With protective conductor:	no
Connectable conductor cross-section, stranded:	2.5 to 8 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	600 V
Overvoltage category:	III
Ambient temperature:	-40 to 125 °C
Contact design:	Pin
Diameter of the plug contact:	4 mm
Degree of pollution:	3
Material of the contact:	other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule:	2.5 to 8 mm²
Contact insert without contacts:	no
Material of the contact coating:	silver
Design of the electrical connection:	axial screw connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	2
Operating temperature:	-40 to 125 °C
Min. number of mating cycles:	500
