Harting 09140024501 Han for 6mm contacts Pneumatic module

In stock

SKU: 625013

Price on request

€3.39

€0

Overview

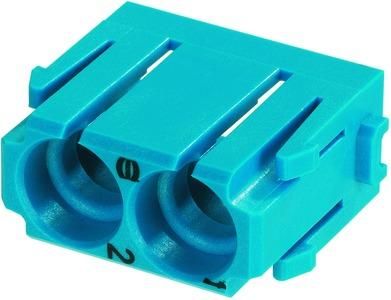

Han pneumatic module, single module, pin, socket, contacts: 2, polycarbonate (PC), blue

Property	Value
Number of poles:	2
With protective conductor:	no
Material of the connector insert:	Thermoplastic
Ambient temperature:	-40 to 80 °C
Contact design:	Pin
Diameter of the plug contact:	9.7 mm
Material of the contact:	other
Contact insert without contacts:	yes
Material of the contact coating:	untreated
Design of the electrical connection:	other
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of Power contacts:	2
Operating temperature:	-40 to 80 °C
Min. number of mating cycles:	500
