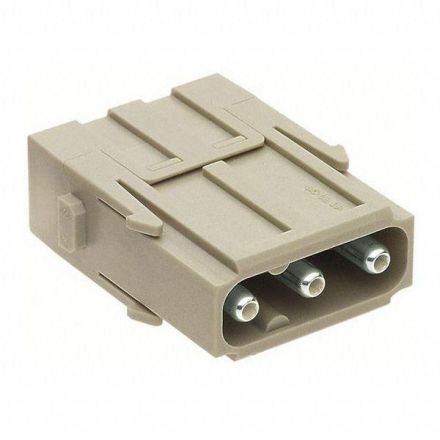

Harting 09140032601 Han C 2.5-8qmm pin contact

In stock

SKU: 625162

Price on request

€18.76

€0

Overview

Han C module, single module, axial screw connection, pin, contacts: 3, conductor cross-section: 2, 5...8 mm², rated current: 40 A, polycarbonate (PC), RAL 7032 (pebble grey), copper alloy, silver-plated

Property	Value
Number of poles:	3
Rated current In:	40 A
Rated impulse voltage:	8 kV
Connectable conductor cross-section, stranded:	2.5 to 8 mm²
Material of Connector insert:	Thermoplastic
Rated voltage:	690 V
Contact design:	Pin
Pollution level:	3
Contact material:	other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule:	2.5 to 8 mm²
Contact insert without contacts:	no
Contact coating material:	Silver
Design of the electrical connection:	Axial screw connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	3
Operating temperature:	-40 to 125 °C
Min. Number of mating cycles:	500
