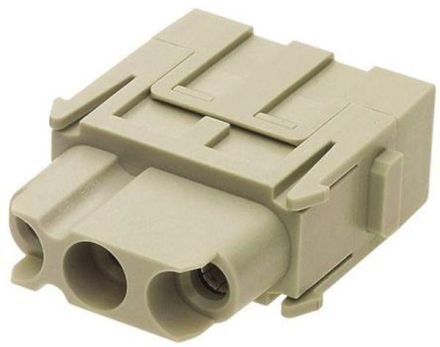

Harting 09140032701 Han C 2.5-8qmm socket contact

In stock

SKU: 625155

Price on request

€16.27

€0

Overview

Electrical data according to DIN EN 61984: 40 A 690 V 8 kV 3, Rated current: 40 A, Rated voltage: 690 V, Rated impulse voltage: 8 kV, Pollution degree: 3, Rated current according to UL: 40 A, Rated voltage according to UL: 600 V, Mating cycles: 500, Insert material: polycarbonate, Contact material: copper alloy, Contact surface: silver-plated,

Property	Value
Number of poles:	3
Rated current In:	40 A
Rated impulse voltage:	8 kV
Connectable conductor cross-section, stranded:	2.5 to 8 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	690 V
Contact design:	Socket
Pollution level:	3
Material of the contact:	other copper alloys
Connectable conductor cross-section, stranded without wire end ferrule:	2.5 to 8 mm²
Contact insert without contacts:	no
Material of the contact coating:	silver
Design of the electrical connection:	Axial screw connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	3
Operating temperature:	-40 to 125 °C
Min. number of mating cycles:	500
