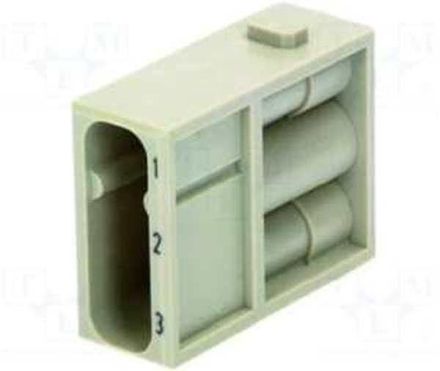

Harting 09140033001 C-module 3-pin pin insert (M)

In stock
SKU: 624878
€4.85
Into a basketIn the basketGo

Overview

Han C module, single module, crimp connection, pin, contacts: 3, conductor cross-section: 1, 5...6 mm², rated current: 40 A, polycarbonate (PC), RAL 7032 (pebble grey)

Property Value
Number of poles: 3
Rated current In: 40 A
Rated impulse voltage: 8 kV
Connectable conductor cross-section, stranded: 1.5 to 6 mm²
Material of the connector insert: Thermoplastic
Rated voltage: 690 V
Contact design: Pin
Pollution level: 3
Contact material: other
Connectable conductor cross-section, fine-stranded without wire end ferrule: 1.5 to 6 mm²
Contact insert without contacts: yes
Contact coating material: other
Design of the electrical connection: Crimp connection
With wire protection: no
Flammability class of the insulating material according to UL 94: V0
Material of the contact insert: Thermoplastic
Number of power contacts: 3
Operating temperature: -40 to 125 °C
Min. number of mating cycles: 500

Characteristics

Rated surge voltage8 kV
HAB09140033001 C-module 3-pin
Minimal order2 pcs
ManufacturerHarting
HAN09140033001
GTIN2000000102740
Connectable conductor cross-section stranded1.5 to 6 mm²
Design of the electrical connectionCrimp connection
Rated voltage690V
Rated current In40A
Operating temperatur-40 to 125 °C
Flammability class of the insulating material according to UL 94V0
Number of poles3
Degree of contamination3
Harting 09140033001 C-module 3-pin pin insert (M)
Harting 09140033001 C-module 3-pin pin insert (M)
€4.85
Into a basketIn the basketGo
