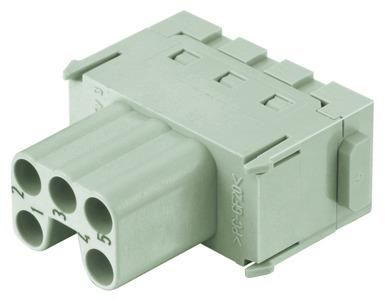

Harting 09140052716 Han ES module socket contact

In stock

SKU: 624910

Price on request

€9.22

€0

Overview

Han ES module, single module, cage clamp connection, socket, contacts: 5, conductor cross-section: 0.14...2.5 mm², rated current: 16 A, polycarbonate (PC), RAL 7032 (pebble grey), copper alloy, silver-plated

Property	Value
Number of poles:	5
Rated current In:	16 A
Rated impulse voltage:	6 kV
Connectable conductor cross-section, stranded:	0.14 to 2.5 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	400 V
Contact design:	Socket
Pollution level:	3
Material of the contact:	other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.14 to 2.5 mm²
Contact insert without contacts:	no
Material of the Contact coating:	Silver
Design of the electrical connection:	Spring-loaded connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	5
Operating temperature:	-40 to 125 °C
Min. Number of mating cycles:	500
