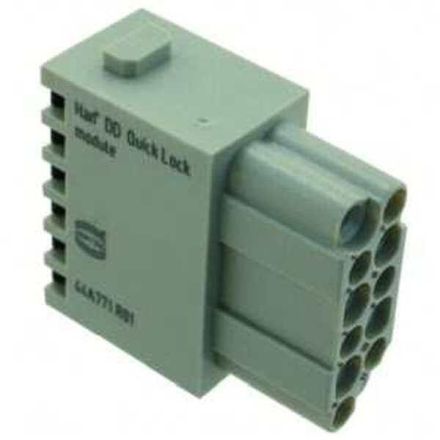

Harting 09140122732 Han DD Quick-Lock socket module

In stock

SKU: 624805

Price on request

€13.81

€0

Overview

Han DDHan-Quick Lock®, Mechanical service life - mating cycles: > = 500, RoHS conformity: Yes, Han-Quick Lock®, black actuator, series: Han-Modular®, connection type: Han-Quick Lock® connection, number of contacts: 12

Property	Value
Number of poles:	12
Rated current In:	10 A
Rated impulse voltage:	4 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	0.25 to 1.5 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	600 V
Ambient temperature:	-40 to 125 °C
Contact design:	Socket
Pollution level:	3
Material of the contact:	Copper
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 1.5 mm²
Contact insert without contacts:	yes
Material of the contact coating:	silver
Design of the electrical connection:	spring-loaded connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	thermoplastic
Number of power contacts:	12
Operating temperature:	-40 to 125 °C
Min. number of mating cycles:	500
