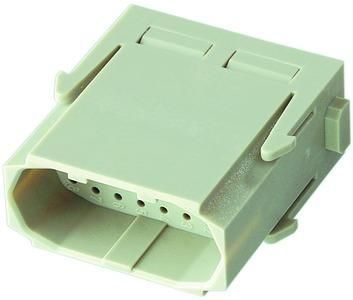

Harting 09140253001 Han High Density Module Pin Module

In stock
SKU: 624991
€5.27
Into a basketIn the basketGo

Overview

Han High Density module, single module, crimp connection, pin, contacts: 25, conductor cross-section: 0.09...0.52 mm², rated current: 4 A, polycarbonate (PC), RAL 7032 (pebble grey)

Property Value
Number of poles: 25
Rated current In: 4 A
Rated impulse voltage: 0.8 kV
Connectable conductor cross-section, stranded: 0.09 to 0.52 mm²
Material of the connector insert: Thermoplastic
Rated voltage: 50 V
Contact design: Pin
Pollution level: 3
Material of the contact: other
Connectable conductor cross-section, fine-stranded without wire end ferrule: 0.09 to 0.52 mm²
Contact insert without contacts: yes
Material of the Contact coating: other
Design of the electrical connection: crimp connection
With wire protection: no
Flammability class of the insulating material according to UL 94: V0
Material of the contact insert: Thermoplastic
Number of power contacts: 25
Operating temperature: -40 to 125 °C
Min. Number of mating cycles: 500

Characteristics

Rated surge voltage0.8 kV
HAB09140253001 Han High Density Module
ManufacturerHarting
HAN09140253001
GTIN5713140021419
Connectable conductor cross-section stranded0.09 to 0.52 mm²
Design of the electrical connectionCrimp connection
Rated voltage50V
Rated current In4 A
Operating temperatur-40 to 125 °C
Flammability class of the insulating material according to UL 94V0
Number of poles25
Degree of contamination3
Harting 09140253001 Han High Density Module Pin Module
Harting 09140253001 Han High Density Module Pin Module
€5.27
Into a basketIn the basketGo
