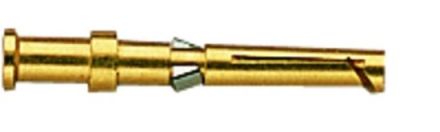

Harting 09150006221 R 15-BU-C-1,5qmm (AU) socket contact

In stock

SKU: 625170

Price on request

€1.21

€0

Overview

Crimp contact, operating current: 10 A, socket, copper alloy, gold-plated, conductor cross-section: 1.5 mm², AWG 16

Property	Value
Stripping length:	8 mm
Connectable conductor cross-section, fine-stranded without wire end ferrule:	1.5 mm²
Connectable conductor cross-section, stranded:	1.5 mm²
Design of the electrical connection:	Crimp connection
Diameter of the plug contact:	1.6 mm
Contact design:	Socket
Max. operating current of a contact:	10 A
Ambient temperature:	-40 to 125 °C
Material of the contact coating:	Gold
Material of the contact:	Other copper alloys
Type of contact:	Turned (lathe)
