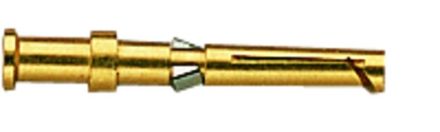

Harting 09150006224 R 15-BU-C-0,14 qmm (AU) HAN D Contact

Harting 09150006224 R 15-BU-C-0,14 qmm (AU) HAN D Contact

In stock

SKU: 624863

Price on request

€1.15

€0

Into a basketIn the basketGo

Overview

Crimp contact, operating current: 10 A, socket, copper alloy, gold-plated, conductor cross-section: 0.14...0.37 mm², AWG 26 ... AWG 22

Property	Value
Stripping length:	8 mm
Connectable conductor cross-section, single-wire:	0.37 to 0.14 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.37 to 0.14 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.37 to 0.14 mm²
Connectable conductor cross-section, stranded:	0.37 to 0.14 mm²
Design of the electrical connection:	Crimp connection
Diameter of the plug contact:	1.6 mm
Contact design:	Socket
Max. Operating current of a contact:	10 A
Ambient temperature:	-40 to 125 °C
Material of the contact coating:	Gold
Material of the contact:	Other copper alloys
Type of contact:	Turned (lathe)

Characteristics

HAB09150006224 R 15-BU-C-0,14 qmm (AU)

Minimal order100 pcs

Manufacturer

HAN09150006224

GTIN5713140022157

Connectable conductor cross-section solid0.37 to 0.14 mm²

Connectable conductor cross-section stranded0.37 to 0.14 mm²

Design of the electrical connectionCrimp connection

Ambient temperature-40 to 125 °C
