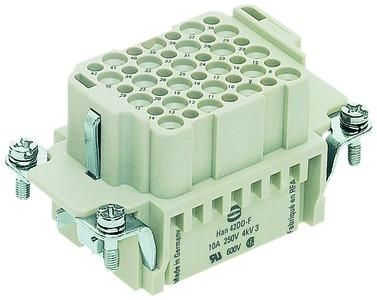

Harting 09160423101 HAN 42DD-BU-C socket contact

In stock
SKU: 625173
€15.65
Into a basketIn the basketGo

Overview

Inserts, crimp connection, socket, polycarbonate, RAL 7032 (pebble grey), rated current: 10A, size: 10 B, contacts: 42, conductor cross-section: 0.14...2.5mm

Property Value
Number of poles: 42
Rated current In: 10 A
Rated impulse voltage: 4 kV
With protective conductor: yes
Connectable conductor cross-section, stranded: 0.14 mm
Material of the connector insert: Thermoplastic
Rated voltage: 600 V
Overvoltage category: III
Ambient temperature: -40 °C
Contact design: Socket
Diameter of the plug contact: 1.6 mm
Degree of pollution: 3
Material of the contact: other copper alloys
Connectable conductor cross-section, single-wire: 2.5 mm
Connectable conductor cross-section, fine-wire with wire end ferrule: 2.5 mm
Connectable conductor cross-section, fine-wire without wire end ferrule: 2.5 mm
Contact insert without contacts: yes
Material of the contact coating: other
Design of the electrical connection: Crimp connection
With Wire protection: no
Flammability class of the insulating material according to UL 94: V0

Characteristics

Rated surge voltage4 kV
HAB09160423101 HAN 42DD-BU-C
ManufacturerHarting
HAN09160423101
GTIN4000049681266
Connectable conductor cross-section solid2.5 mm
Connectable conductor cross-section stranded0.14 mm
Design of the electrical connectionCrimp connection
Rated voltage600V
Rated current In10A
Flammability class of the insulating material according to UL 94V0
Number of poles42
Ambient temperature-40°C
Degree of contamination3
Overvoltage categoryIII
Harting 09160423101 HAN 42DD-BU-C socket contact
Harting 09160423101 HAN 42DD-BU-C socket contact
€15.65
