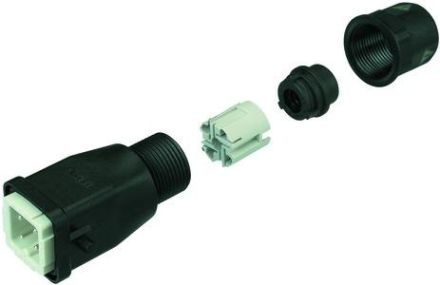

Harting 09200030440 HAN 3A with Harax pin contact

In stock

SKU: 624885

Price on request

€15.95

€0

Overview

Connector sets, HARAX® connection technology, Male, Rated current: 10 A, Contacts: 3, Copper alloy, Silver plated, Hood, Size: 3 A, Top entry, Degree of protection: IP65, IP67

Property	Value
Material of the contact:	other copper alloys
Material of the contact coating:	Silver
Rated current In:	10 A
Rated impulse voltage:	4 kV
Design of the electrical connection:	Insulation displacement connection
Protection class (IP), mounted:	IP67
With protective conductor:	yes
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.75 to 1.5 mm²
Operating temperature:	85 to -40 °C
Type of locking:	other
Material of the insulating body:	Polycarbonate
Contact design:	Pin
Connectable conductor cross-section, stranded:	1.5 to 0.75 mm²
Flammability class of the insulating material according to UL 94:	V0
Material of the housing:	other
Number of poles:	3
Housing coating:	other
EMC version:	no
With seal:	no
Arrangement the cable feed:	above
