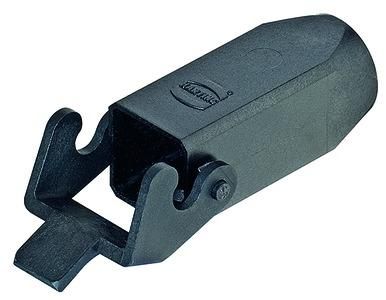

Harting 09200030727 HAN 3A-KG-QB-PG11 (sw) KU coupling housing

In stock

SKU: 625010

Price on request

€4.99

€0

Overview

Coupling housing, black, size: 3 A, single lever, straight cable entry, 1x Pg 11, housing material: polycarbonate, RAL 9005 (jet black), protection class: IP44, IP67, with sealing screw 09 20 000 9918

Property	Value
Width:	24 mm
Height:	57 mm
Housing design:	Coupling housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	top
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	no
Material of the housing:	Plastic
Flammability class of the insulation material according to UL 94:	V0
Housing coating:	other
Bracket position:	Lower part
Housing color:	black
Mounting type of the cable gland:	PG
With nozzle:	no
With seal:	no
Number of cable entries:	1
