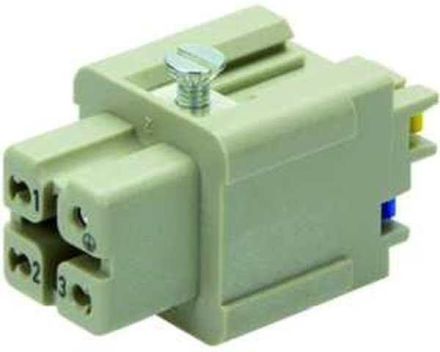

Harting 09200032733 HAN 3A-F-QL socket contact

In stock

SKU: 625051

Price on request

€9.25

€0

Overview

Inserts, Han-Quick Lock connection, socket, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 10 A, size: 3 A, contacts: 3, conductor cross-section: 0.5...2.5 mm², copper alloy, silver-plated

Property	Value
Number of poles:	3
Rated current In:	10 A
Rated impulse voltage:	4 kV
With protective conductor:	yes
Connectable conductor cross-section stranded:	0.5 to 2.5 mm²
Material of the connector insert:	Thermoplastic
Contact design:	Socket
Degree of contamination:	3
Material of the contact:	other copper alloys
Connectable conductor cross-section, stranded without wire end ferrule:	0.5 to 2.5 mm²
Contact insert without contacts:	no
Material of the contact coating:	Silver
Design of the electrical connection:	Spring-loaded connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	Thermoplastic
Number of power contacts:	3
Operating temperature:	-40 to 125 °C
Min. Number of mating cycles:	500
